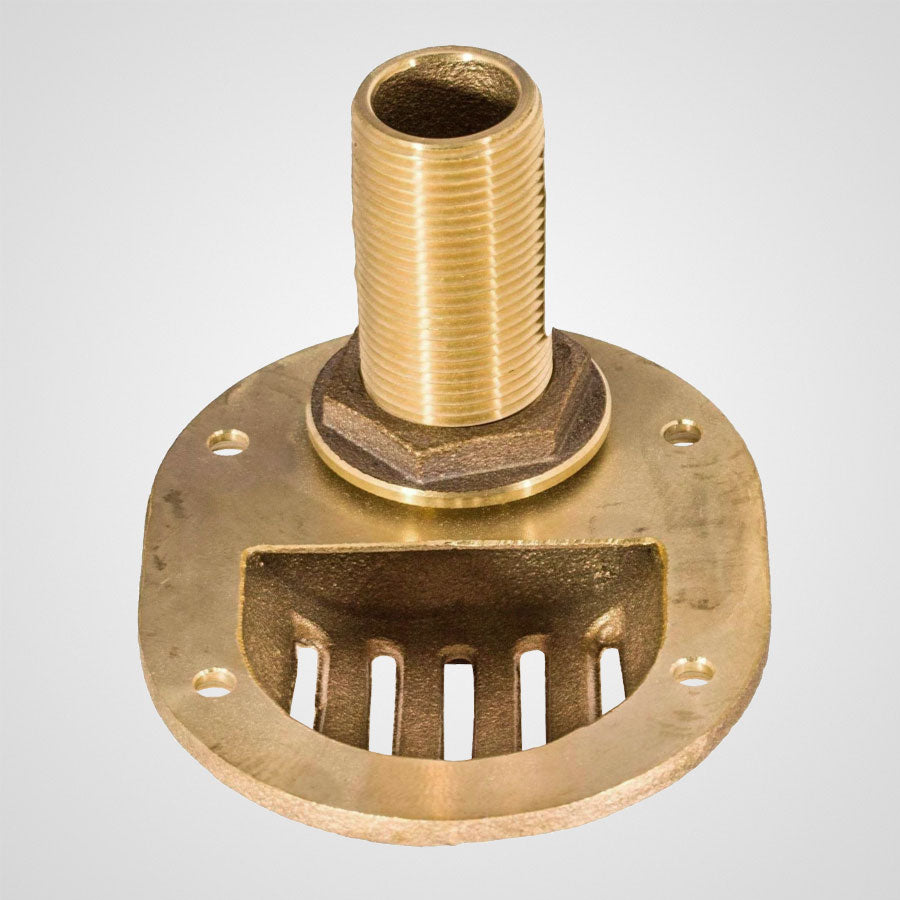

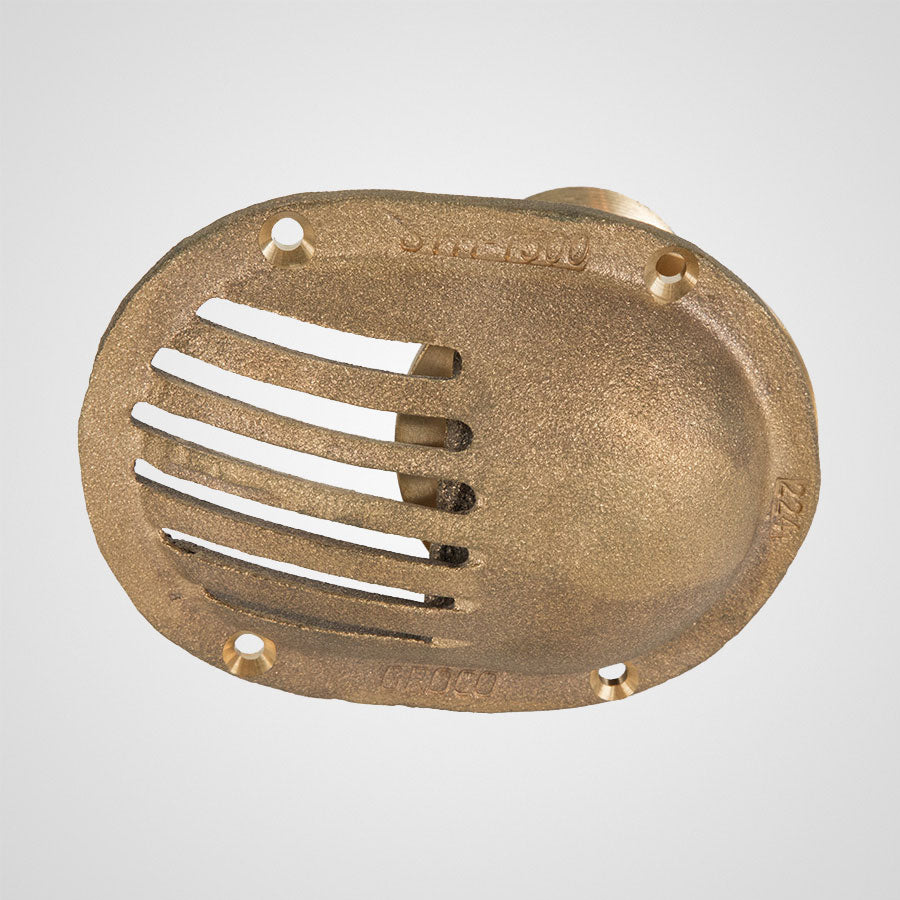

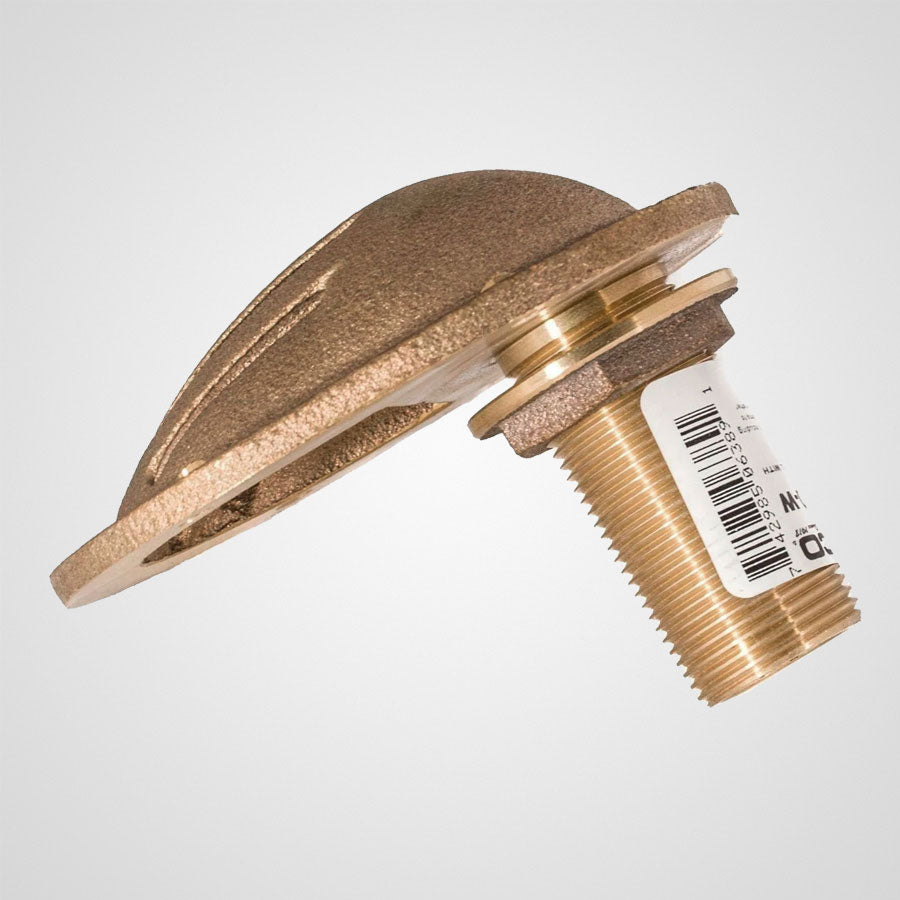

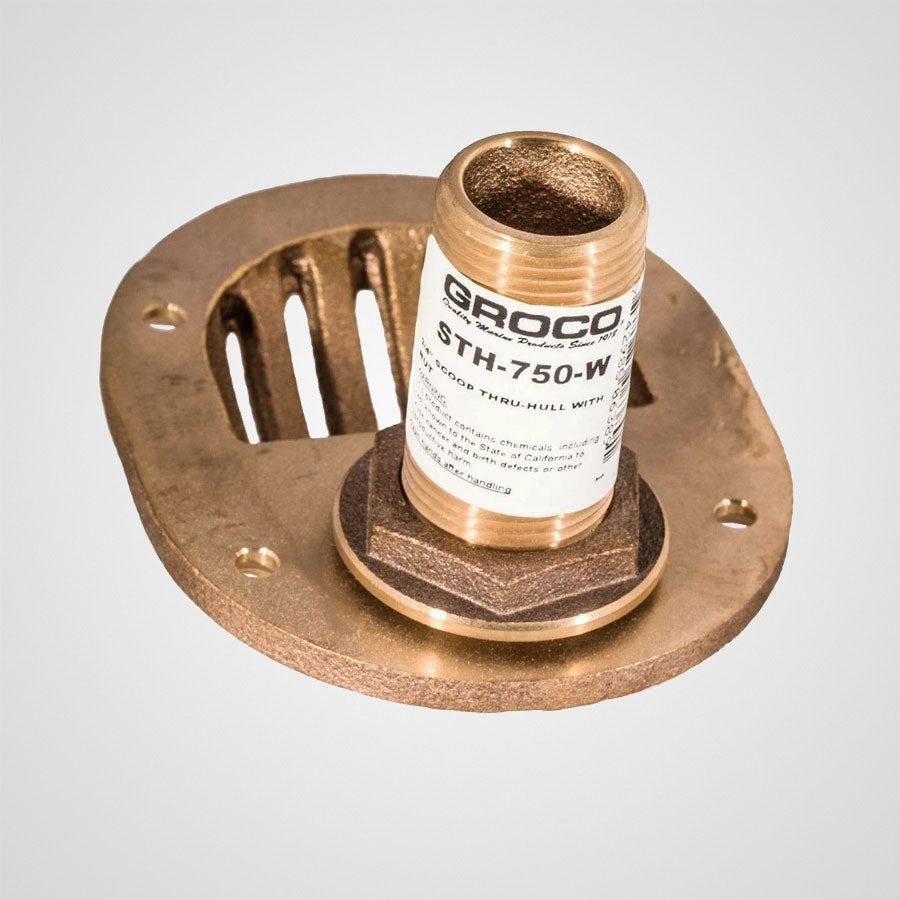

Groco Bronze Scoop Thru-Hull

The GROCO Bronze Scoop Thru-Hull with Nut is fabricated out of C83600 bronze. The unique design helps prevent air locks in your water-intake lines at high speeds. Keeps water flowing at low speeds and debris out at any speed. Sealant is recommended between the hull and thru-hull flange. Includes integrated thru-hull fitting. Marine UL-listed. NPSM/NPT combination thread. UL Listed 647-B.

Use #8 zinc-plated screws to secure the scoop to the hull, not included.

Features:

• NPSM / NPT combination thread
• C83600 Bronze
• UL Listed 647B
• Available with (-W) or without nut (-L)
• BSPP and Stainless Steel models available

Size: 3/4″; Shank Length: 2.2″; Strainer Height: 1.05″; Strainer Width: 3.05″; Strainer Length: 4″
Size: 1″; Shank Length: 2.85″; Strainer Height: 1.05″; Strainer Width: 3.05″; Strainer Length: 4″
Size: 1.5″; Shank Length: 3.15″; Strainer Height: 1.3″; Strainer Width: 3.5″; Strainer Length: 4.83″
Size: 2″; Shank Length: 3.6″; Strainer Height: 1.5″; Strainer Width: 4″; Strainer Length: 5.75″
